Samoa Equipment For Fluid Management In Industrial Processes.
flow division series
DC20 Plastic
Samoa DC20 Plastic 1:1 diaphragm pump system is a 1/4" version, plastic body construction in either Acetal, PVDF, or Polypropylene, 0.016 US gallons per cycle flow rate, 23' max wet suction lift, 1/4" NPT or BSP fluid inlet/outlet, and 3/8" NPSM air inlet.
flow division series

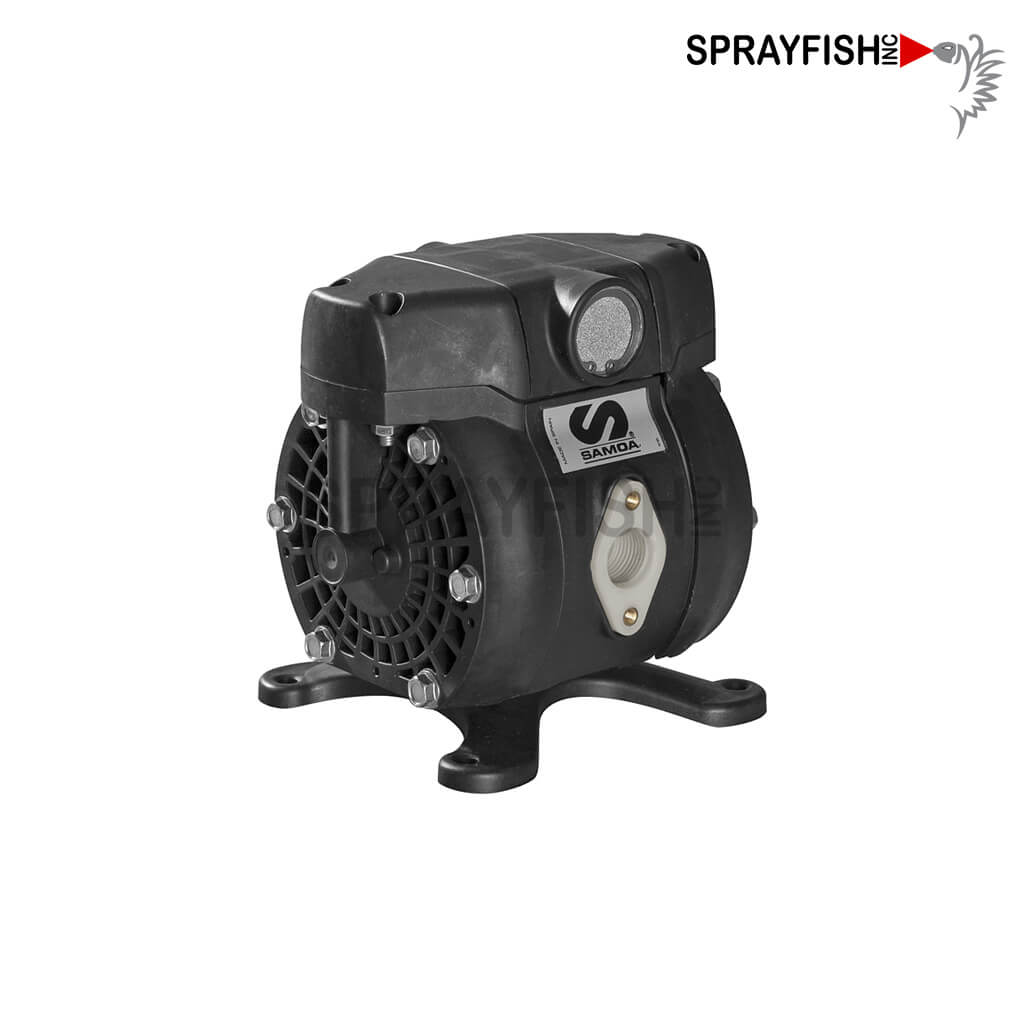

DF30 Plastic
Samoa DF30 Plastic 1:1 diaphragm pump system is a 1/2" version, plastic body construction in either Acetal, PVDF, or Polypropylene, 0.04 US gallons per cycle flow rate, 26' max wet suction lift, 1/2" NPT or BSP fluid inlet/outlet, and 3/8" NPSM air inlet.
flow division series

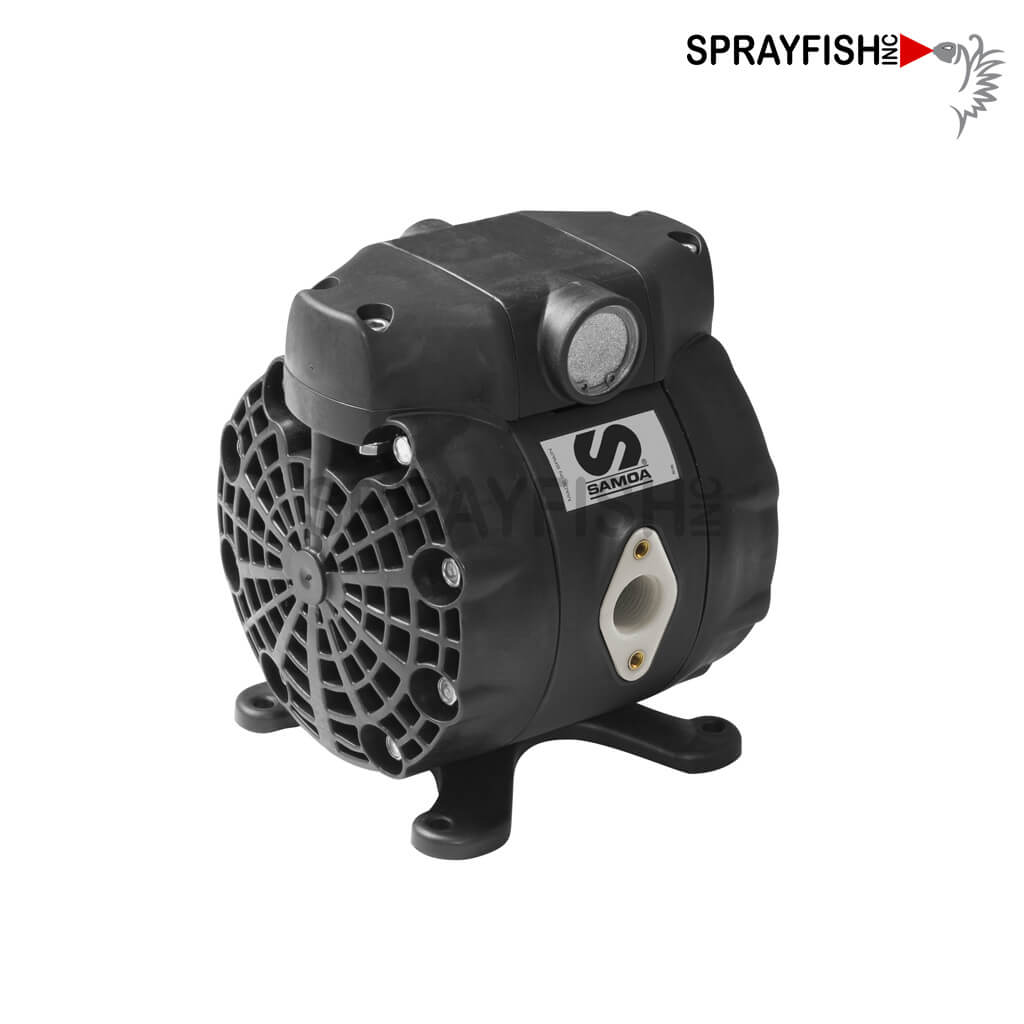

DF50 Plastic
Samoa DF50 Plastic 1:1 diaphragm pump system is a 1/2" version, plastic body construction in either Acetal, PVDF, or Polypropylene, 0.05 US gallons per cycle flow rate, 26' max wet suction lift, 1/2" NPT or BSP fluid inlet/outlet, and 3/8" NPSM air inlet.
flow division series

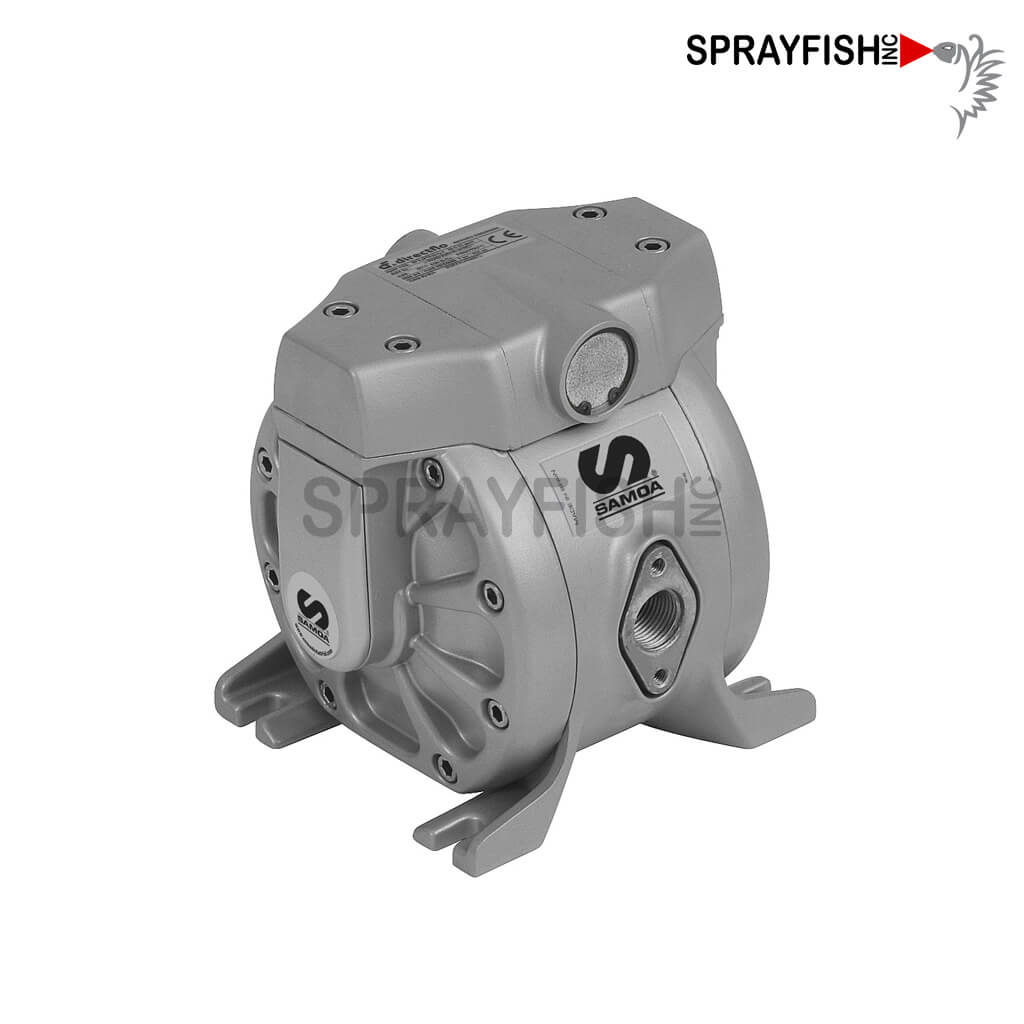

DF50 Metal
Samoa DF50 Metal 1:1 diaphragm pump system is a 1/2" version, metal body construction in either Aluminum or Stainless, 0.05 US gallons per cycle flow rate, 26' max wet suction lift, 1/2" NPT or BSP fluid inlet/outlet, and 3/8" NPSM air inlet.
flow division series

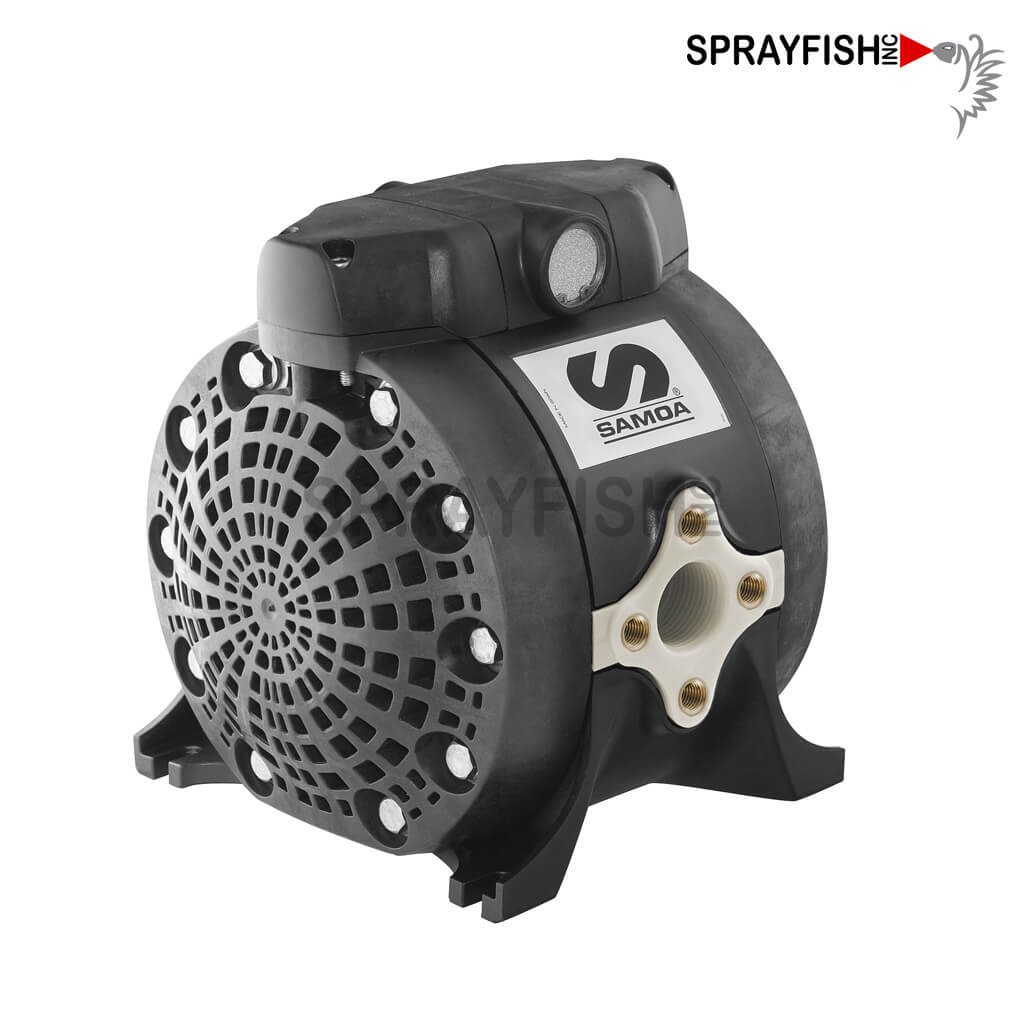

DF100 Plastic
Samoa DF100 Plastic 1:1 diaphragm pump system is a 1" version, plastic body construction in either Acetal, PVDF, or Polypropylene, 0.13 US gallons per cycle flow rate, 23' max wet suction lift, 1" NPT or BSP fluid inlet/outlet, and 3/8" NPSM air inlet.
flow division series

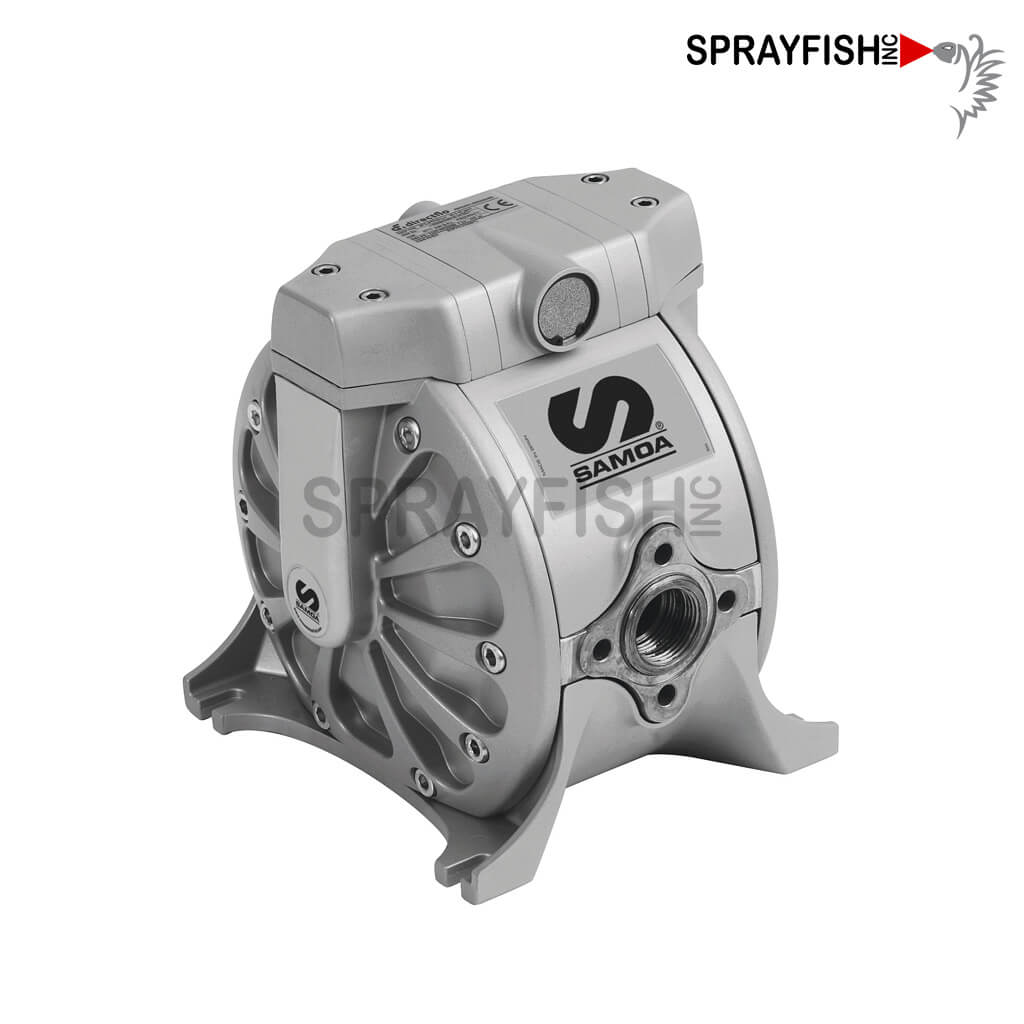

DF100 Metal
Samoa DF100 Metal 1:1 diaphragm pump system is a 1" version, metal body construction in either Aluminum or Stainless, 0.13 US gallons per cycle flow rate, 23' max wet suction lift, 1" NPT or BSP fluid inlet/outlet, and 3/8" NPSM air inlet.
flow division series

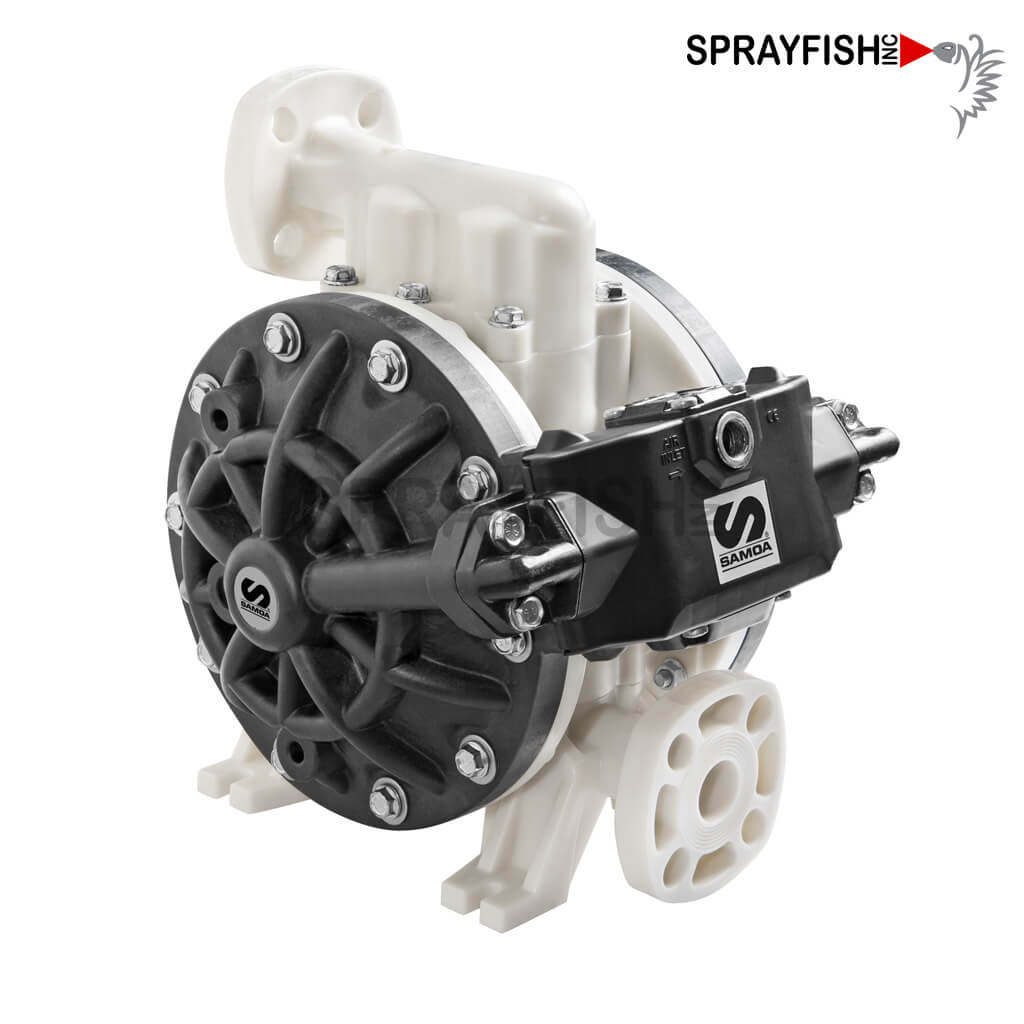

DP200 Plastic
Samoa DP200 Plastic 1:1 diaphragm pump system is a 1" version, plastic body construction in either Acetal, PVDF, or Polypropylene, 0.26 US gallons per cycle flow rate, 26' max wet suction lift, 1" NPT or BSP fluid flange inlet/outlet, and 3/8" NPSM air inlet.
flow division series

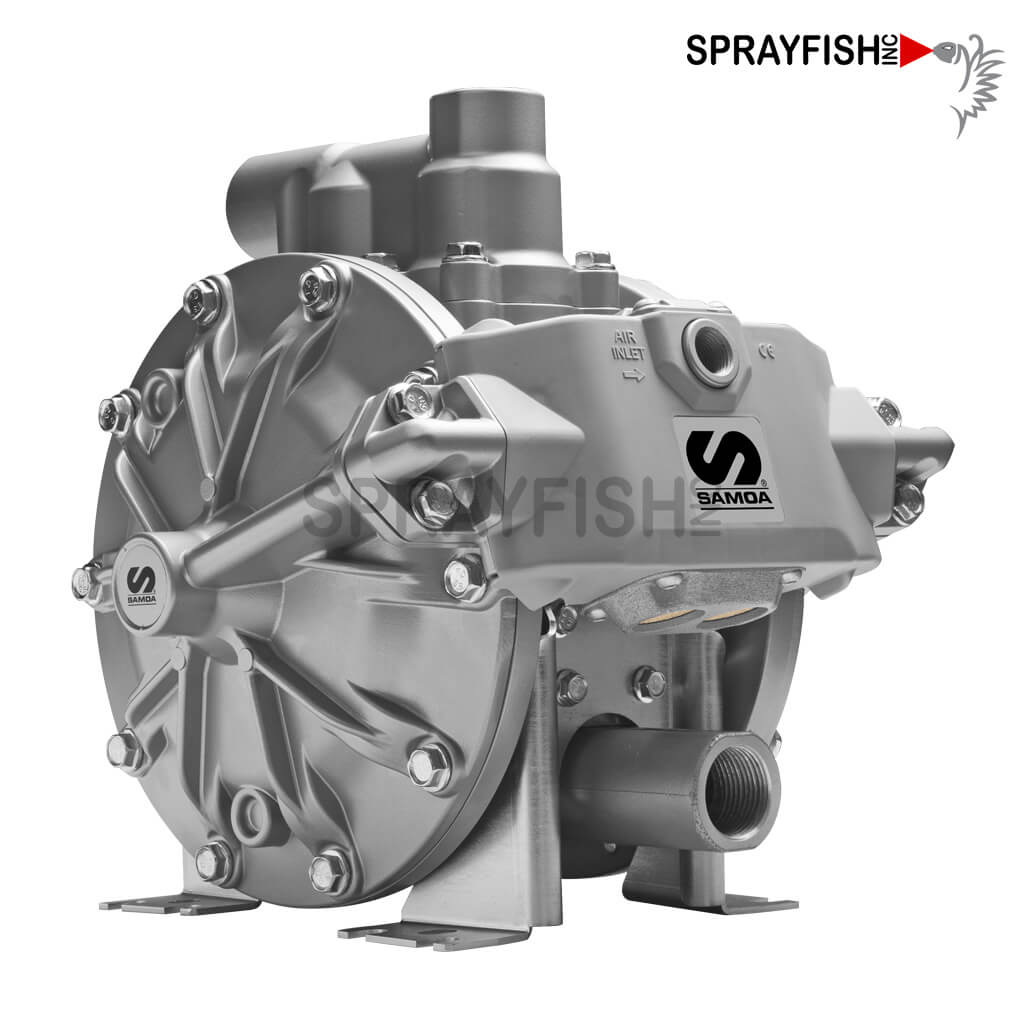

DP200 Metal
Samoa DP200 Metal 1:1 diaphragm pump system is a 1" version, metal body construction in either Aluminum or Stainless, 0.26 US gallons per cycle flow rate, 26' max wet suction lift, 1" NPT or BSP fluid flange inlet/outlet, and 3/8" NPSM air inlet.
flow division series

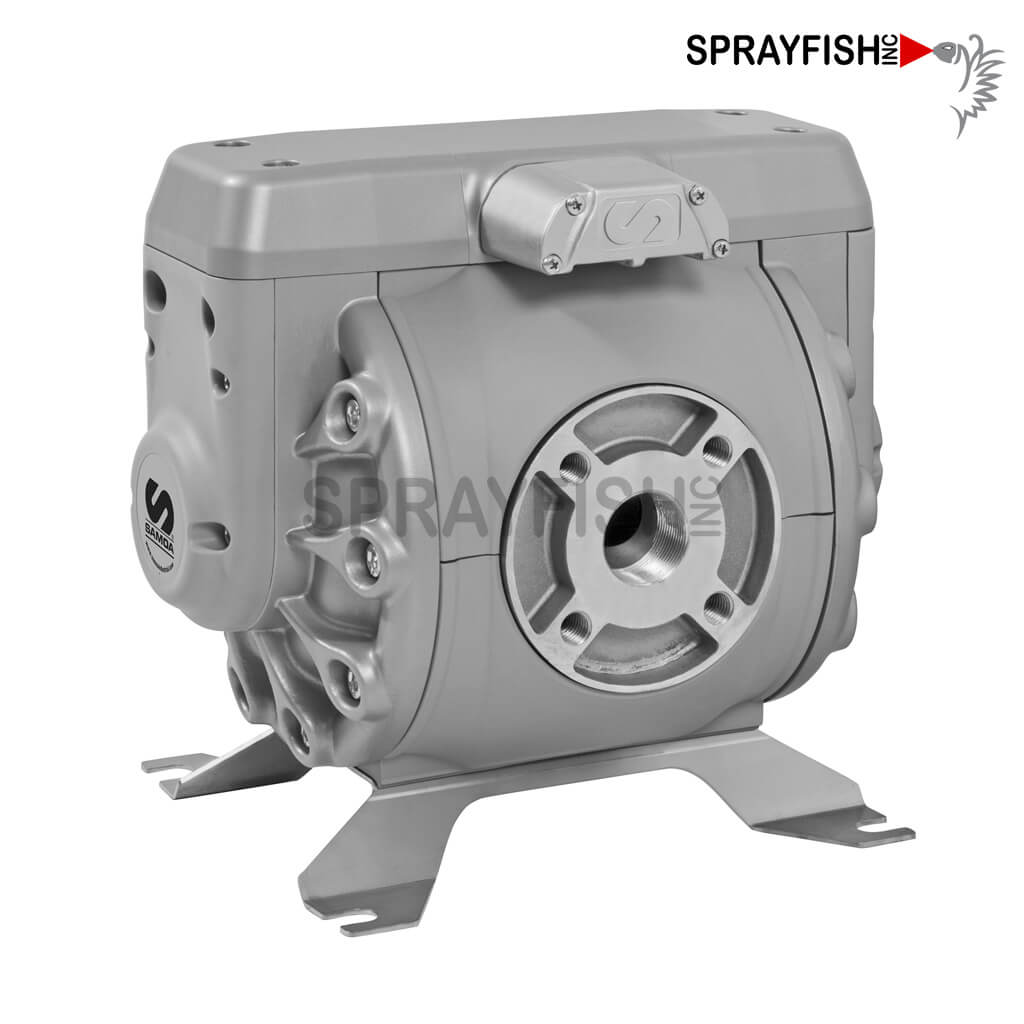

DF250 Metal
Samoa DF250 Metal 1:1 diaphragm pump system is a 1-1/2" version, metal body construction in either Aluminum or Stainless, 0.32 US gallons per cycle flow rate, 26' max wet suction lift, 1-1/2" NPT or BSP fluid inlet/outlet, and 1/2" NPSM air inlet.
flow division series

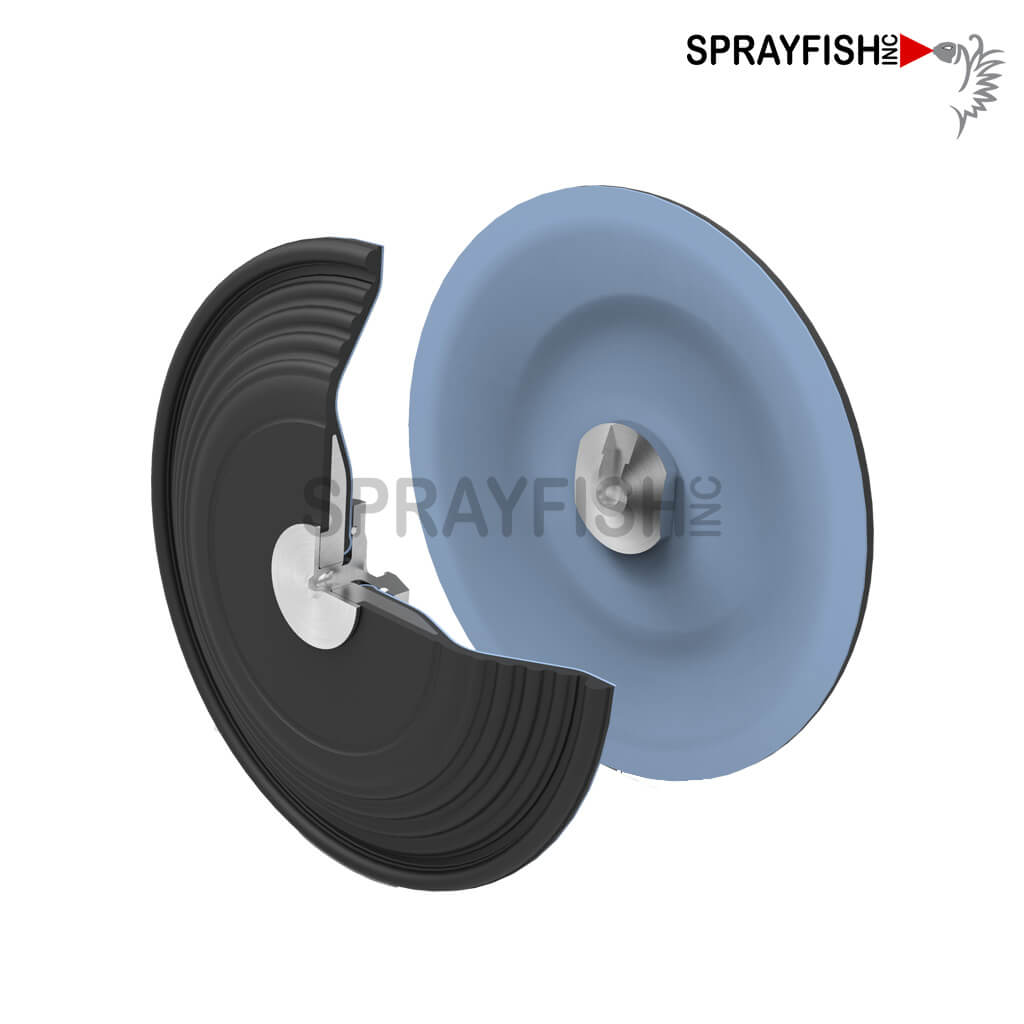

Overmolded Diaphragms
Overmolded Diaghragms come standard on all Samoa 1:1 DC/DF/DP Series of Pumps. Which allows your pump to run much longer and cleaner than standard diaphragms.
flow division series
Push Rod PTFE Bushing
The Push Rod PTFE Bushing for the Samoa DirectFlo Pump Technology is a unique design where your fluids run through the center of the pump vs the outside. This Push Rod connects the diaphragms and seals the pump.
flow division series
Frictionless Pivot Valve
The Frictionless Pivot Valve provides fast reciprocal action, minimizing flow pulsation and pump vibration. It contributes to reduced air consumption.
